QHZ-1700 AB-Piece Folder Gluer

Short Description:

QHZ-1700 is our latest enhanced model of AB-Piece Folder Gluer. Basically it applies to process 3/5/7 ply A/B/C/E/BC/AB/BE/BAB/AAA-flute corrugation box. It’s available for gluing two pieces of board into one carton.


Product Detail

Product Tags

VIDEO

SPECIFICATION

QHZ-1700

Max. single paper size 1700 (W) × 1600 (L) mm
Min. single paper size 400 (W) × 400 (L) mm
Paper material A/B/C/E/BC/AB/BE/BAB/AAA corrugated etc. 3/5/7 ply
Max. speed 200m/min
Power 47kw
Machine weight ≤22T
Machine size 16500×2850×2000mm(L×W×H)

ADVANTAGES

Each part is an independent module, and each part is controlled by servo motor.

High-precision chain connection can ensure synchronous and stable movement of lead screw drive guide plate.

NEW & Environmental friendly structure.

The design concept of grouping is adopted to facilitate operators to enter the machine for operation.

Main accessories such as belt bearing guide rail are imported brands.

High efficiency, shorter than normal folder gluer, space saving.

Machine Details

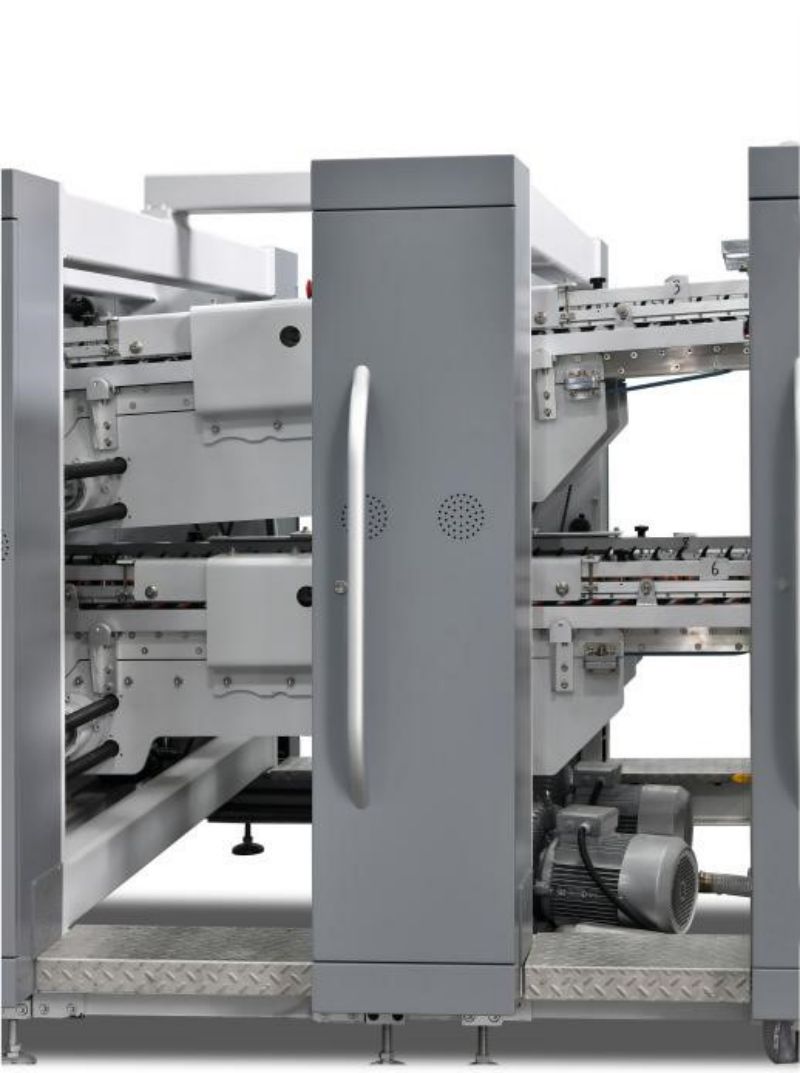

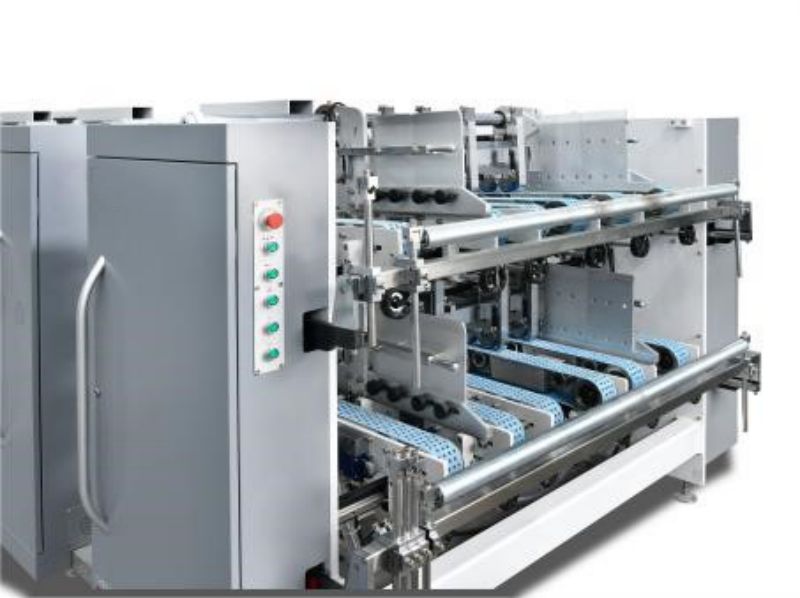

A.Feeder

● Upper and lower feeders are independently driven by servo motor.

● Separately control the upper and lower corrugated box’s output time and gap, benefit for gluing irregular box and box-in-box.

● Feeding belts with holes and suction device avoid paper slipping.

● Feed gates of fixed square bar integrated with the handler for easy operation and stable.

● Lateral feed gates control by screw motor, which can be adjusted automatically to set position when input the box size.

● Feeding knives fixed by linear slide rails for upper and lower adjustment with high precision and no gap, only by adjusting screw to adjust paper gap precisely.

acsdv (1)
acsdv (2)

B.Register/Alignment

● Align the corrugated box with left and right direction after feeding, which can choose left alignment or right alignment.

● The main function components are pressure-adjustable pressure rubber wheel module, angle-adjustable driving belt and lateral block angle alignment.

● Driving belts in alignment section can be adjusted to required angle according to the corrugated box size and thickness.

● The pressure rubber wheel can be adjusted to the required pressure according to the thickness and size of corrugated box.

● The angle adjustment of the driving belt and the pressure adjustment of the pressure rubber wheel by thread structure for easy operate.

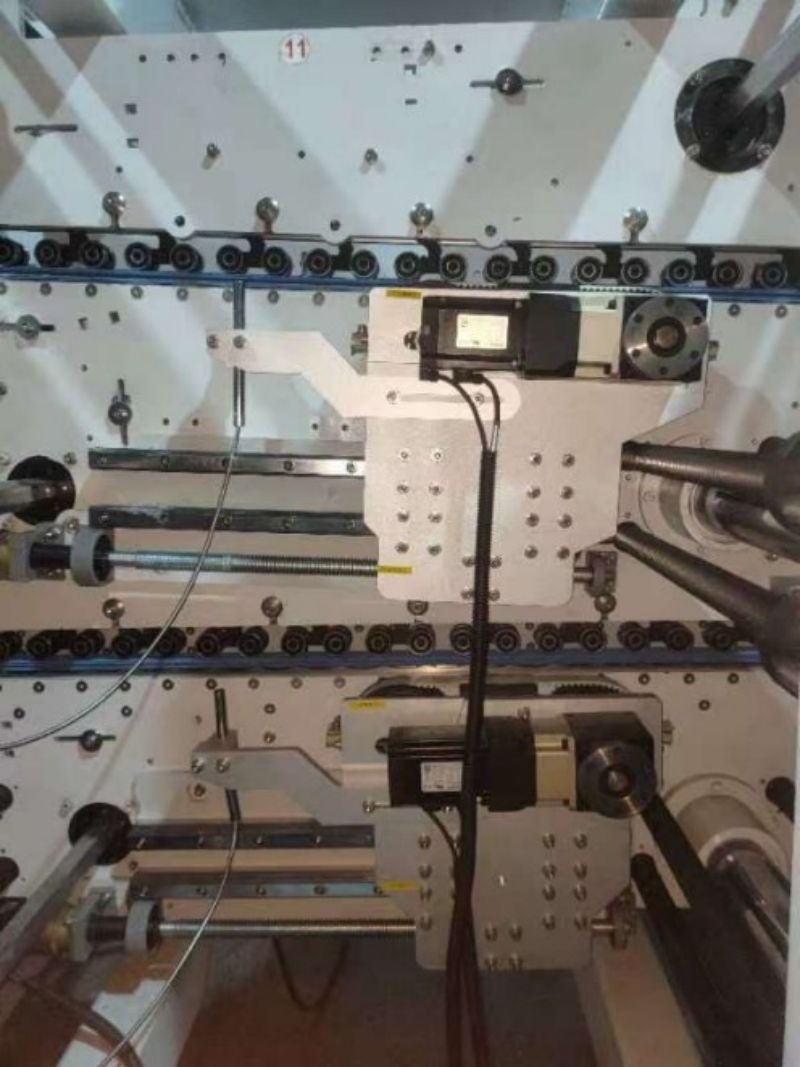

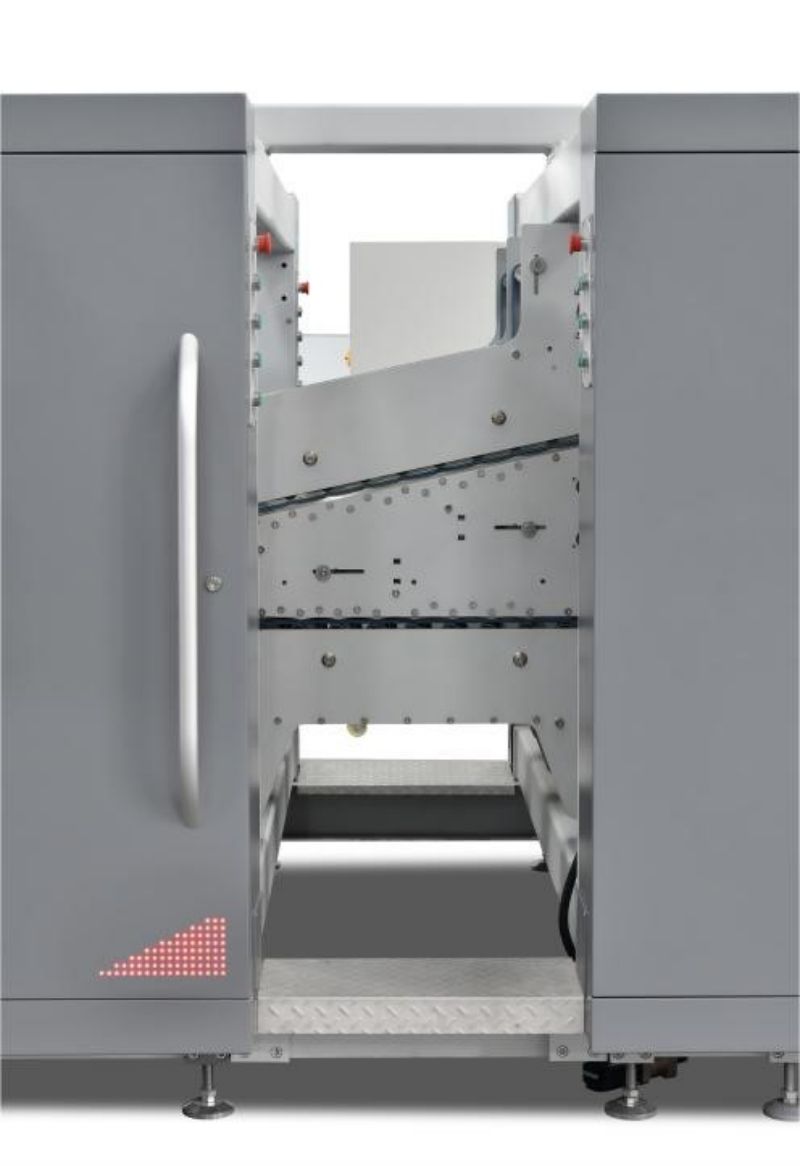

C.Location system section

● Independent transmission devices with upper and lower drive belt for deliver the corrugated box independently.

● The transmission device adjust the belt speed in real time with photoelectric sensors, controlled by PLC and a set of complex calculation logic.

● Equip with second creasing line device.

● Second creasing line used to re-creasing the glue line of upper and lower corrugated boxes separately for easy and accurate folding glue side.

● Creasing line device is driven by a belt and synchronized with the machine. With the creasing wheel scientifically design of creasing knives suitable for creasing line, pressure can be micro-adjustment by the spring thread structure.

acsdv (3)
acsdv (4)

D.Upper & lower papers align & joint section

● The modling / forming part of the machine, and consists of 4 parts:upper corrugated paper conveyor,lower corrugated paper conveyor, folding & gluing section, front locating device.

● Upper & lower corrugated paper conveyor are designed to controlled the belt pressure flexibly.

● The gluing position folding section can fold the glue line accurately and glue well after forming.

● The front locating device will align the upper and lower corrugated papers anteroposterior, or set a distance between the 2 papers.

● The front locating device work by the belts speed-up and speed-down.

● Upper and lower corrugated papers meet and glue & joint together after glued and aligned by the front locating device.

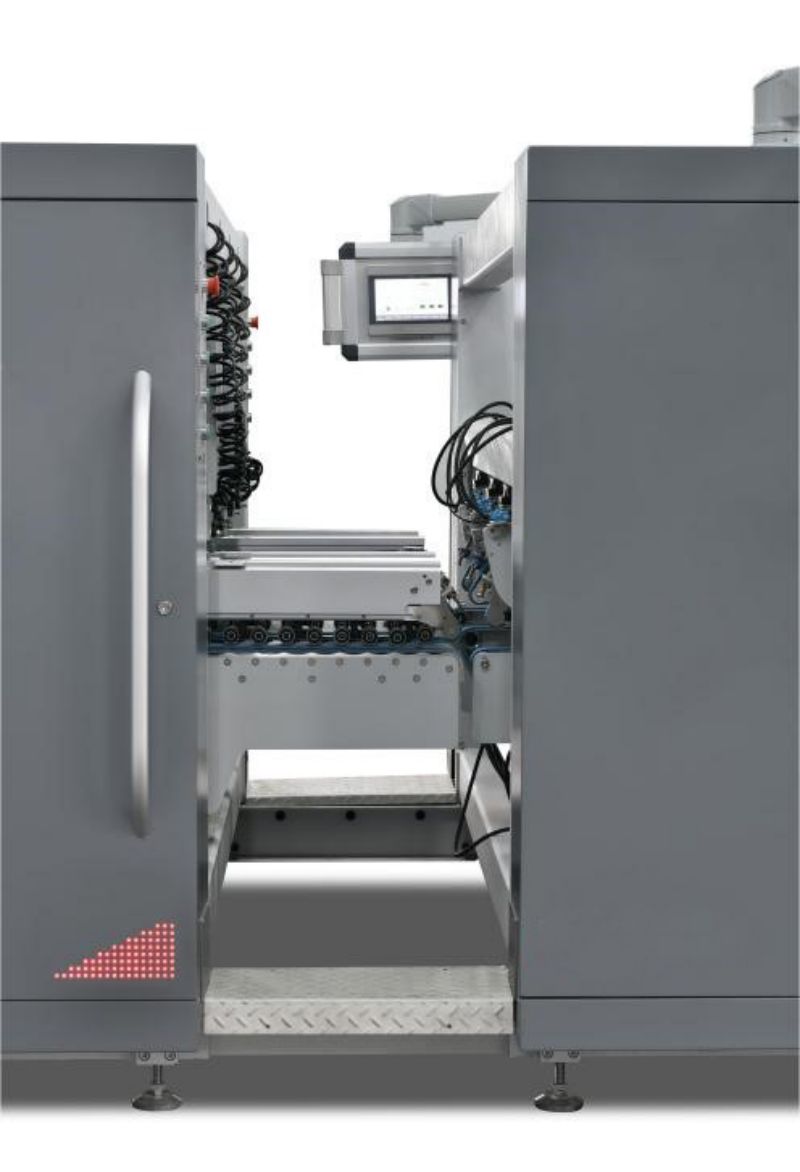

E.Trombone

● Catch the joint box, conveyor box and press glue lines at the same time.

● Glue line press device is equipped left and right, work efficiently by the threaded spring.

● The upper belt rail is fixed by cylinder connection. The button controls rail up and down. Convenient to operate and adjust the upper rail pressure.

acsdv (5)

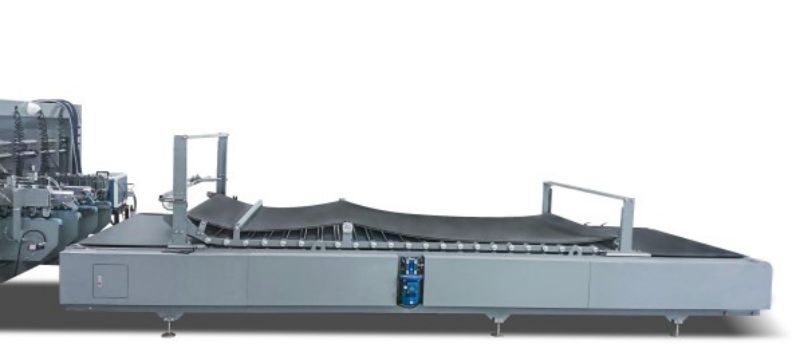

F.Conveyor

● Conveying frequency control, proportional linkage with the host.

● The high elastic grass roller self-pressure box, the force is uniform, and make the product more perfect.

● After the machine lengthening design, to ensure that the product is not easy to open.

● The conveyor belt up and down transmission adopts the active device, conveying belt runs more synchronously.

● The press with forward and backward movement of electric adjustment.

acsdv (6)
acsdv (7)

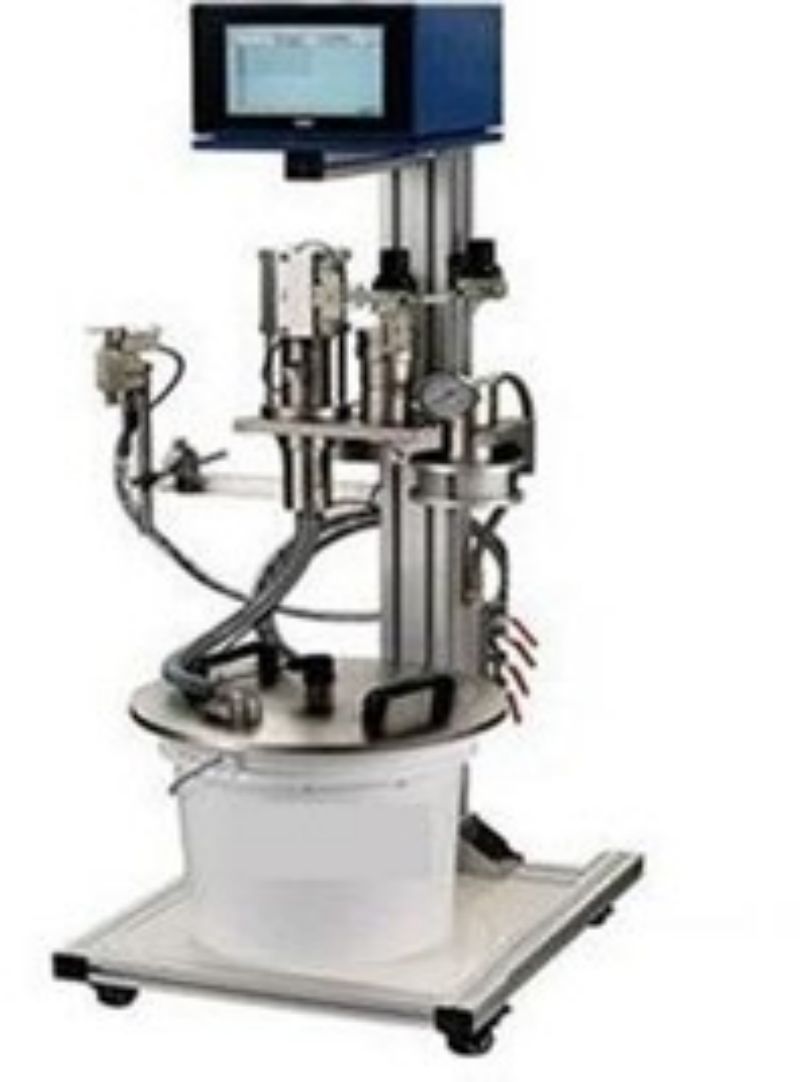

G.Cold glue system: 4 control 2 guns

Model KPM-PJ-V24
Voltage AC220V(±20%) 50-60HZ
Power 480W
Gun working frequency ≤500 period/second
Air source input pressure 6 bar (Treated with filtered water and oil)
Glue viscosity 700-2000 mPas
Glue pressure 5-20 bar
Working speed ≤300 m/min
Working accuracy ±1 mm (speed <100 m/min)
System bracket dimensions 700W * 500D * 1200H
Gun quantity Optional, ≤4 pcs
Detector Optional, ≤4 pcs

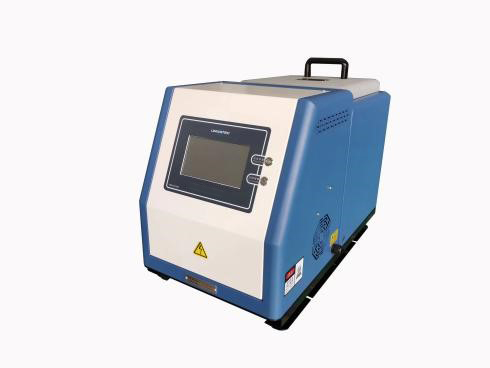

H.Hot glue system: 2 control 2 guns

Temperature control, numerical control, temperature sensing, national standard
Operating frequency 180 times/min
Power 14KW
Operating temperature 200℃
Power supply 220V/50Hz
Air pressure 2-4 kg
Size 750*420*535 mm
Control voltage 24V
Weight 65KG
Maximum viscosity 50000
Maximum temperature 250℃
Maximum sol rate 10-15
