HMC-1080HD Automatic Die Cutting Machine (600T heavy-duty type)

Short Description:

HMC-1080HD Automatic Die Cutting Machine is an ideal equipment more suitable for die cutting thick grey board, 3/5/7-ply corrugation board. Its full automation makes operation become safer, production speed become faster and die cutting precision become higher. It’s with features of front gauge, pressure and paper size auto adjusting system.

Product Detail

Product Tags




600T heavy-duty type, with sample checking table, with 3-side stripping & hole cleaning function

Max. Paper Size(mm) 1080(W) x 780(L)
Min. Paper Size(mm) 400(W) x 360(L)
Max. Die Cutting Size(mm) 1070(W) x 770(L)
Paper Thickness(mm) 0.1-1.5 cardboard≤4 corrugated board
0.1-2.5 cardboard≤4 corrugated board
depends on actual product blade line
Max. Working Speed(pcs/hr) 7000
Die Cutting Precision(mm) ±0.1
Pressure Range(mm) 2
Max. Working Pressure(T) 600
Total Power(kw) 16
Blade Line Height(mm) 23.8
Paper Pile Height(m) 1.6
Machine Weight(T) 15
Machine Size(mm) 6300(L) x 3705(W) x 2350(H)
Rating 380V, 50Hz

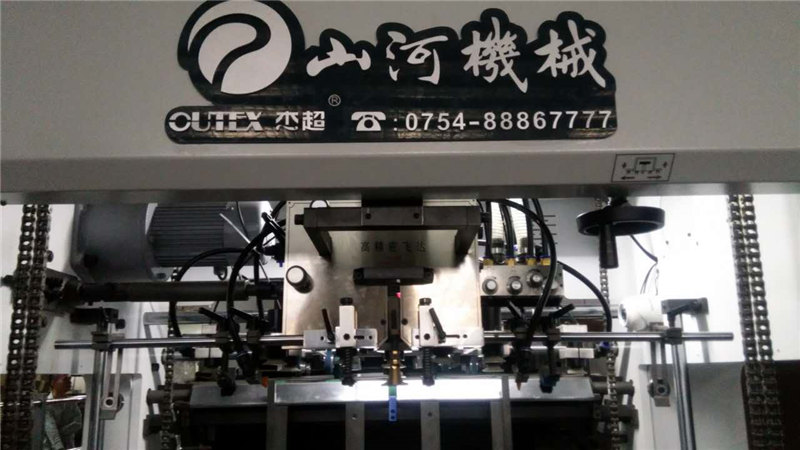

1. Feeder

With European technology, this feeder is available for conveying cardboard and corrugated paper. Stable & precise!

Automatic Die-Cutting Machine Model HMC-10802
Automatic Die-Cutting Machine Model HMC-10803

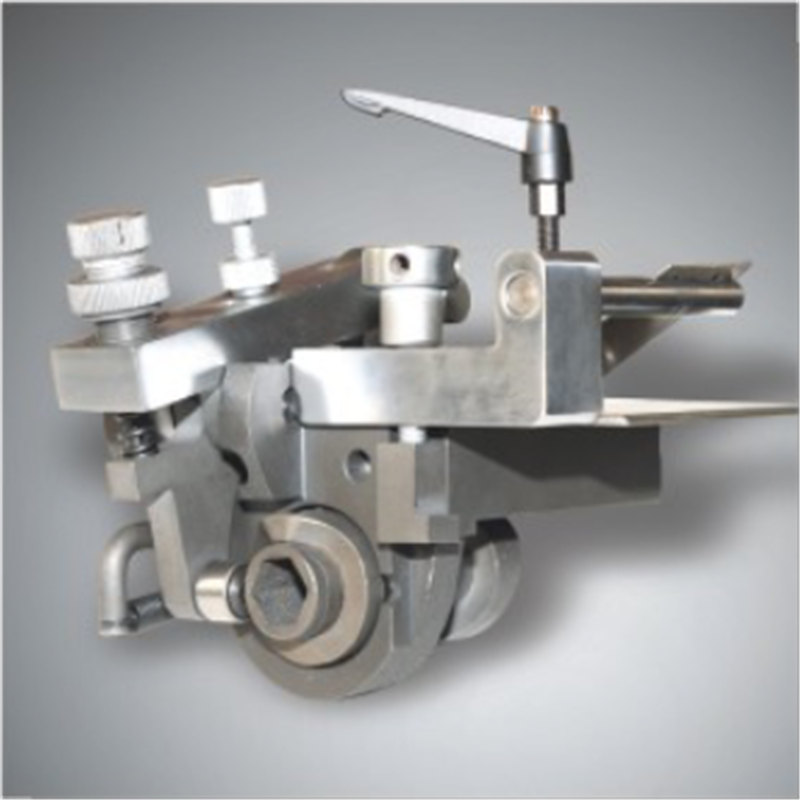

2. Fine Press Wheel

It can adjust itself according to different products’ sizes without scratching paper!

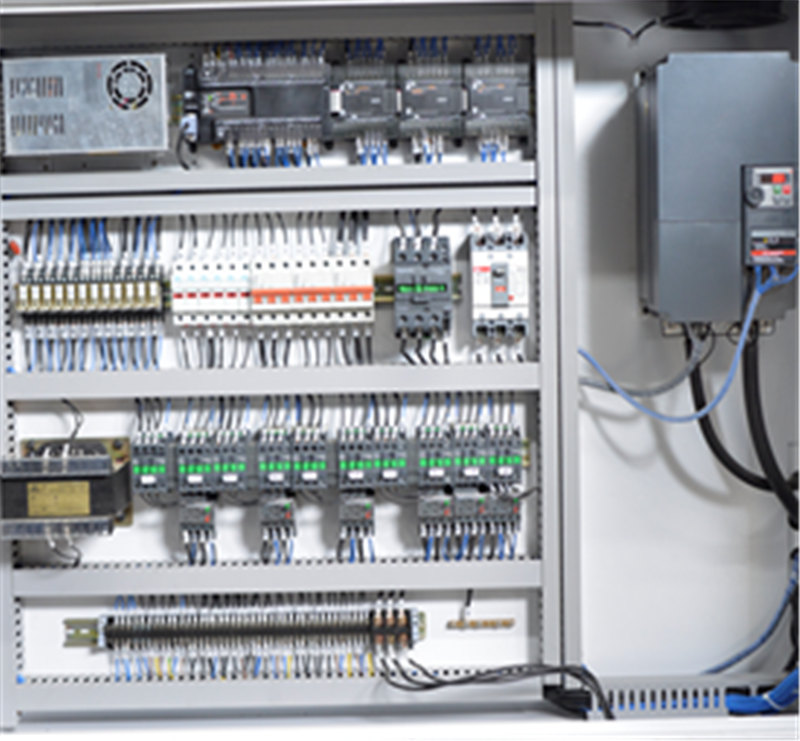

3. PLC Programmable Control System

The electrical par adopts PLC programmable control system, it makes the paper feeding, transporting and then die-cutting with full automatic control and testing. And it is equipped with a variety of security switch which can be automatically shut down in case of any unexpected situation.

Automatic Die-Cutting Machine Model HMC-10804
Automatic Die-Cutting Machine Model HMC-10805

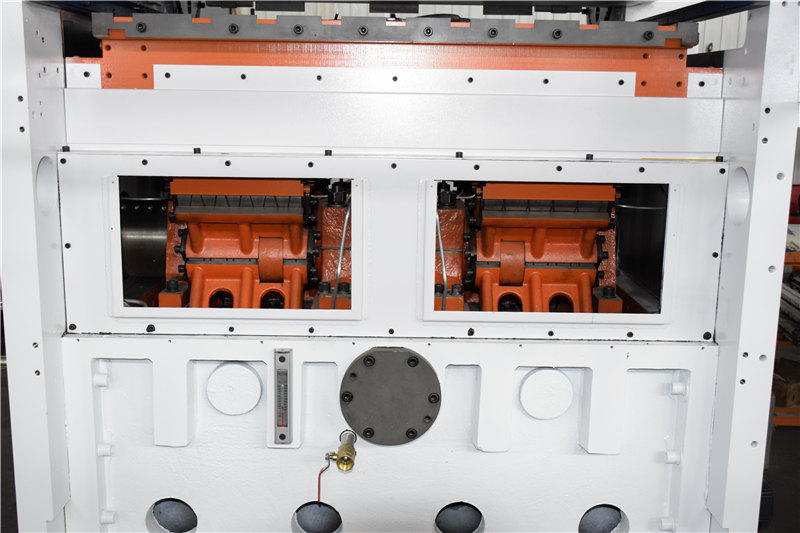

4. Driver System

The main driver system adopts worm wheel, worm gear pair and crankshaft structure, to ensure the machine running stable and with high precision. The material of the worm wheel is special alloys of copper.

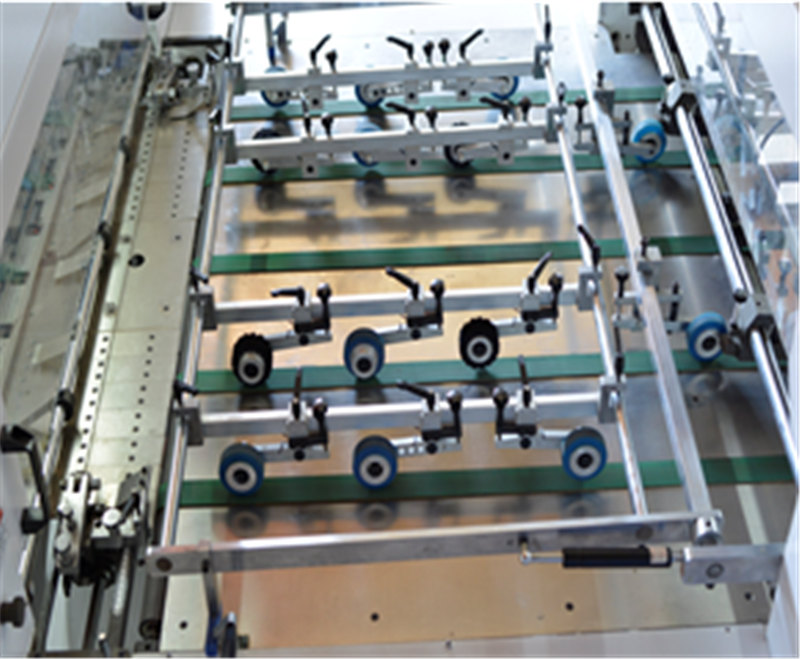

5. Belt Pressure Transporting Style

The unique technology of belt pressure transporting style, can avoid bending the paper round of the collision, and realize the full pressure of the paper feed type forward pressure on the traditional way.

Automatic Die-Cutting Machine Model HMC-10801
