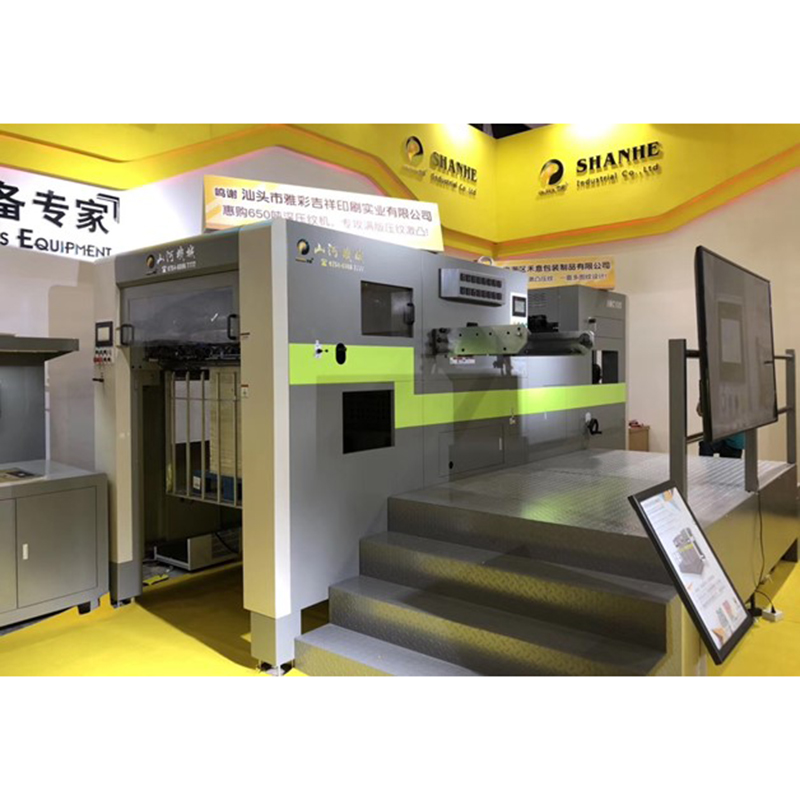

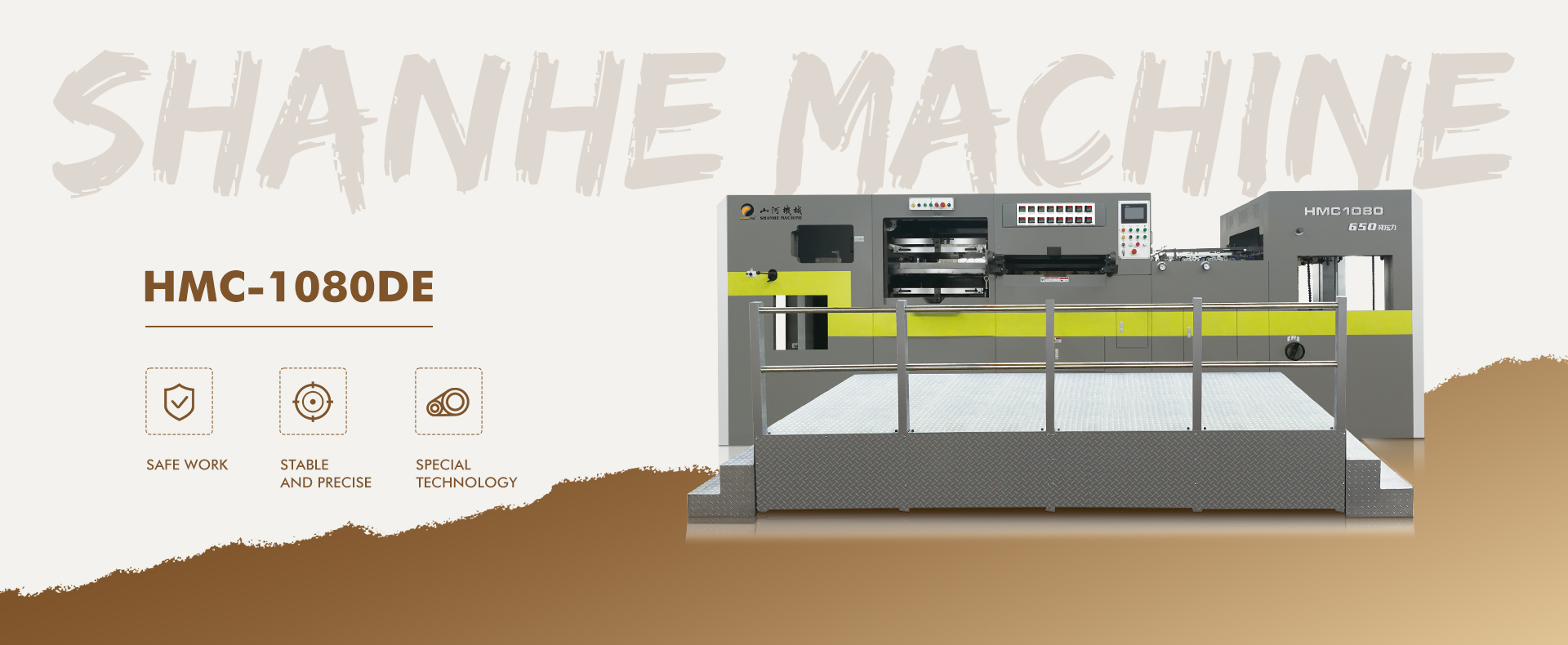

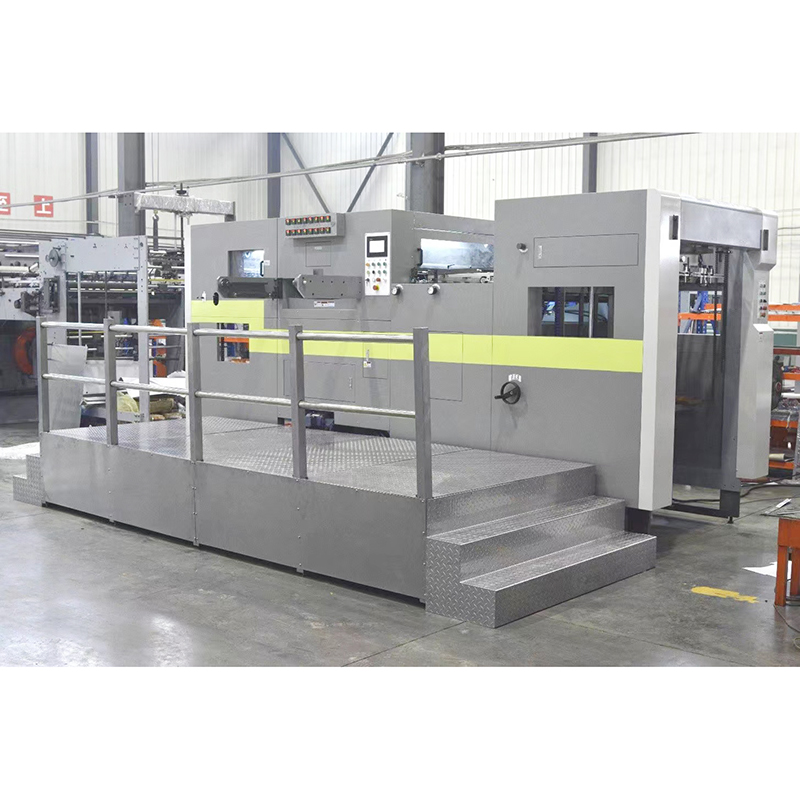

HMC-1080DE Automatic Deep Embossing Die Cutter (650T)

Short Description:

HMC-1080DE 650-ton automatic deep embossing die cutter is the latest model of flat-bed die cutter “SHANHE MACHINE” creates for the surface embossing of top grade colorful carton, especially aiming at the overall deep embossing and spot creasing. Machine is suitable for die cutting job, creasing job and deep embossing job.

Send email to us

Product Detail

Product Tags

PRODUCT SHOW

SPECIFICATION

HMC-1080DE
Max. paper size(mm)	1080(W) x 780(L)
Min. paper size(mm)	360(W) x 400(L)
Max. die cut size(mm)	1070(W) x 770(L)
Paper thickness(mm)	0.1-3（cardboard）, ≯5（corrugated board）
Max. speed(pcs/hr)	7000
Die cut precision(mm)	±0.1
Pressure range(mm)	2
Max. pressure(ton)	650
Power(kw)	34.7
Knife blade height(mm)	23.8
Paper pile height(mm)	1.6
Weight(kg)	19
Size(mm)	6000(L) x 3705(W) x 2250(H)
Rating	380V, 50Hz, 3-phase 4-wire

DETAILS

1. Feeder

With European technology, this feeder is available for conveying cardboard and corrugated paper. Stable & precise!

Automatic Die-Cutting Machine Model HMC-10802

Automatic Die-Cutting Machine Model HMC-10803

2. Fine Press Wheel

It can adjust itself according to different products’ sizes without scratching paper!

3. PLC Programmable Control System

The electrical par adopts PLC programmable control system, it makes the paper feeding, transporting and then die-cutting with full automatic control and testing. And it is equipped with a variety of security switch which can be automatically shut down in case of any unexpected situation.

Automatic Die-Cutting Machine Model HMC-10804

Automatic Die-Cutting Machine Model HMC-10805

4. Driver System

The main driver system adopts worm wheel, worm gear pair and crankshaft structure, to ensure the machine running stable and with high precision. The material of the worm wheel is special alloys of copper.

5. Belt Pressure Transporting Style

The unique technology of belt pressure transporting style, can avoid bending the paper round of the collision, and realize the full pressure of the paper feed type forward pressure on the traditional way.
